Accessory of restriction device
Sitepath：Home > Products > Instrument fittings > Restriction device
condenser
The role of condenser is to condense the steam for measurement in pressure pipe and keep the constancy of the condensed liquid level with equal height in the pressure pipe. Therefore, the condenser is necessary when the media for measurement is steam.
PN6.3, PN16Mpa。
Isolators:
Measurement of high-viscosity, corrosion, easy to freeze and easy to precipitate solids when the fluid should be used in liquid separation and isolation, so that the measured differential pressure of fluid does not contact or differential pressure transmitter, differential pressure in order to avoid destruction of or Differential Pressure Transmitter normal work performance.
Nominal pressure: PN6.3, 16MPa.
Gas-collecting device and settlement:
The role of gas-collecting device to collect and periodic signal from the gas pipe to prevent air bubbles gathered in the guide tube and the effects of pressure differential transmission. The settlement's role is to collect and regularly from the signal line in the dirt and gas pipelines in the water signal to prevent solid particles or liquid pressure in the guide tube deposition. Disengager divided into two liquid and gas.
Nominal pressure: PN6.3MPa.

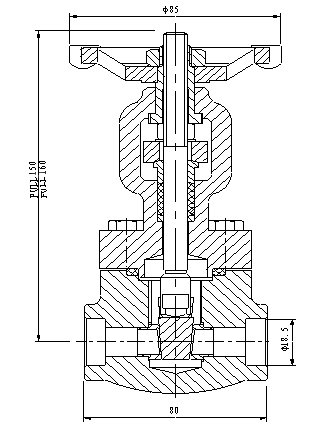

Expenditure items in close proximity to the signal governing the installation of cut-off valve should be on the road. Signal control on the road when equipped with a condenser, in close proximity to the location of the condenser should be cut-off valve installed. Cut-off valve of the pressure and corrosion resistance should be in charge of the same Road. Cut-off valves are commonly used: HYF4-2B J21W-64C, P DN10 valve outside screw, HYF6-2, HYF6-6 Z61H-64C, P DN10 socket weld valve.
