CMC-2A series of intensive insulated busbar
Sitepath：Home > Products > Electrical > Busway
The scope of application of
CMC-2A series of intensive insulated busbar trunking system for the exchange of three-phase four-wire, three-phase five-wire system, frequency 50-60HZ, rated current 100-5000A in the power supply system, as the industrial, enterprise and high-rise buildings for the allocation of power output of power, and is particularly applicable to the workshop, the transformation of old enterprises.
1, the structural characteristics
Heat resistant
The series busbar shell phase and phase-phase and are close together, it can withstand greater stress and thermal stress of electric. And can be scheduled by the conductive heat generated by the rapid dissemination, large carrying capacity.
Insulating joints fastening bolts, dual-link used to connect copper, an increase of the effective joint contact area, greatly reduces the temperature rise of joint positions.
Flexible wiring
Series Busway plug the flexible interface can be a large number of socket set, a strong general, when the position adjustment of electrical equipment, without changes in power supply system.
2. Main technical parameters
Busway in line with the IEC439-2, GB7251.2-1997.
Busway can guarantee 110% rated current and rated voltage of the long-term work.

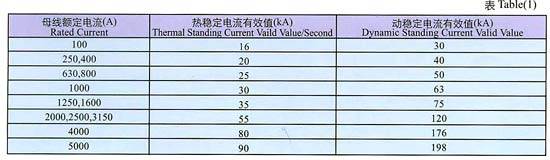

Busway in accordance with Table (1) data through the dynamic and thermal stability test, and test bus can not be aware of was the permanent deformation.
CMC-2A series busbar can withstand the power frequency withstand voltage 3750V took 1min without breakdown and flashover.
In the long pass to rated current, the conductive parts of the temperature rise of less than Table (2) values listed.
Busway Plug box with a plug of not less than 200.
CMC-2A Series Busway closed for the whole structure, and a protection up to IP40.
Busbar cross-section dimension and see the weight per meter (1) and Table (3).
Heat resistant
The series busbar shell phase and phase-phase and are close together, it can withstand greater stress and thermal stress of electric. And can be scheduled by the conductive heat generated by the rapid dissemination, large carrying capacity.
Insulating joints fastening bolts, dual-link used to connect copper, an increase of the effective joint contact area, greatly reduces the temperature rise of joint positions.
Flexible wiring
Series Busway plug the flexible interface can be a large number of socket set, a strong general, when the position adjustment of electrical equipment, without changes in power supply system.
2. Main technical parameters
Busway in line with the IEC439-2, GB7251.2-1997.
Busway can guarantee 110% rated current and rated voltage of the long-term work.
Busway in accordance with Table (1) data through the dynamic and thermal stability test, and test bus can not be aware of was the permanent deformation.
CMC-2A series busbar can withstand the power frequency withstand voltage 3750V took 1min without breakdown and flashover.
In the long pass to rated current, the conductive parts of the temperature rise of less than Table (2) values listed.
Busway Plug box with a plug of not less than 200.
CMC-2A Series Busway closed for the whole structure, and a protection up to IP40.
Busbar cross-section dimension and see the weight per meter (1) and Table (3).
